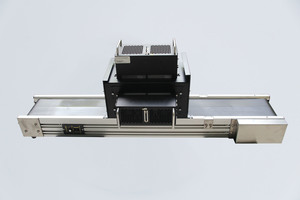

UV CURING PRODUCTION LINE CONVEYOR SYSTEM
Product Description and Features
- LED Curing system offering high intensity light curing capabilities.
- Typical cure speeds are between 5-15 seconds.
- High performance.
- Compact, lightweight, and durable.
- Fan or water cooled for temperature management.
- Instant on/off function – no warming up time.
- Very high intensity outputs.
- Suitable for a wide range of manufacturing applications.
- Superior product life span – 20,000 working hours.
- Safe for use in any production environment – ozone free, mercury free.
- No replacement parts required.
- Suitable for use in the Medical Device manufacturing markets.
- Suitable for working with all types of substrates.
Specifications
- Conveyor Production Line UV Curing System
- Adjustable speed: m/min:1-10m
- Dimension: Length: 1200mm x Width: 410mm
- Belt material: Teflon / green belt / stainless steel mesh belt
- Light source: Can be configured with one or two LED light heads depending on your part size
- Effective width of belt: 350mm (with Product Guide)
UV Intensity
- The LED can be specified at a range of intensities from 750-8000mW/cm2 @10mm
Wavelength Options
- UV ovens are available in 365nm, 385nm, 395nm, 405nm options.
Customisation
- We offer a complete custom design service and Conveyor systems can be designed to meet your exact specification requirements.
Cooling Options
- Depending on size and configuration units are either fan cooled or water cooled.
Accessories
- UV protective glasses.
CE Certified
- All our UV equipment is CE certified. Certificates are available upon request.
Contact us now for full specification details – sales@novachem.ie
